MESA Adjustable decking & paving supports

What are support pedestals?<!--qu-->

Support pedestals are a system that enable the laying of porcelain paving or decking substructures without the need for grout, adhesive or cement. Using support pedestals makes for a quick and easy installation, while still proving a robust substructure for your paving or decking.

Support pedestals are nearly always used on flat roofs, balconies, and terraces, and they are increasingly used in gardens.

Please note for higher buildings MESA have a steel pedestal range which are non-combustible and often more appropriate.<!--split-->

What are MESA plastic support pedestals made of?<!--qu-->

MESA plastic support pedestals are made from 90% recycled polypropylene and polyethylene, and 10% talc, UV stabilisers and black masterbatch. They are the most intelligent, robust and sustainable paving supports on the market. With an easy twist of the top part of the pedestal, the height can be adjusted to allow for a simple and quick installation. MESA plastic support pedestals are also a low maintenance solution making them the perfect choice for any commercial area or residential installation.<!--split-->

What size do MESA plastic support pedestals come in?<!--qu-->

MESA plastic support pedestals come in an adjustable height range of 10-740mm with a head diameter of 140mm, and a base diameter of 200mm. These diameters have been engineered to allow for maximum support while still fitting seamlessly under your paving or decking.<!--split-->

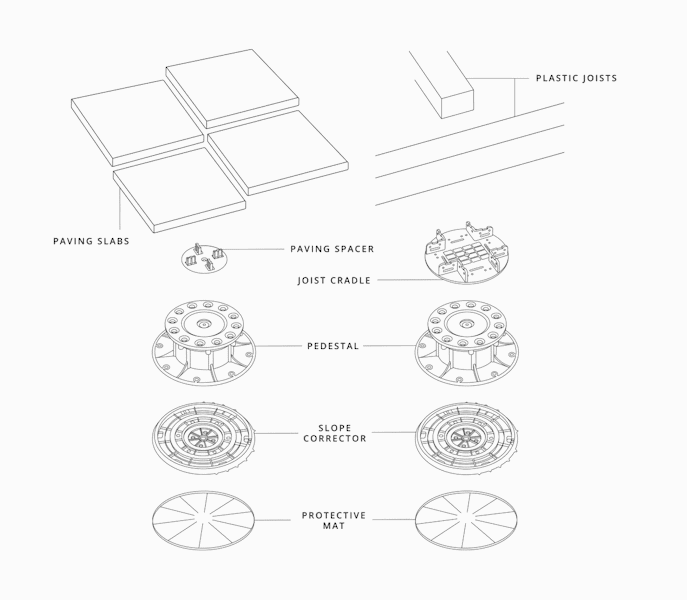

What are the different parts of MESA plastic support pedestals?<!--qu-->

The bottom of the MESA plastic support pedestal is known as the base unit. This has a diameter of 200mm for maximum support. The middle part has the extending ring and coupler. This part is only supplied with pedestals exceeding 175mm height. The top part of the pedestal comes with a collar fix. This locks the height adjustments and ensures it does not lower due to vibrations or shock movement.

For the smaller heights of MESA pedestals, this is slightly different. The 10-44mm joist cradles, for example, are made of a cylindrical piece, which come packaged together. The 11-16mm pedestals are made from two very low cylindrical pieces, which also come packaged together.<!--split-->

How much warranty do you offer on your plastic support pedestals?<!--qu-->

MESA plastic support pedestals come with 20 years residential and 10 years commercial limited international warranty. Find the full warranty here.<!--split-->

What is the operating temperature for MESA plastic support pedestals?<!--qu-->

MESA plastic support pedestals can be used in temperatures between -40°C and 120°C, making them the perfect solution for any climate.

Download the full MESA plastic support pedestals technical specifications here.<!--split-->

How much weight do MESA plastic support pedestals support?<!--qu-->

MESA plastic support pedestals have a working load of 1,000kg each. This means that the entire area is able to support over 2.5kN/m2 if required.

Please check with EnviroBuild for higher required load capacities.

Find the MESA installation guide here.<!--split-->

Are MESA plastic support pedestals frost resistant?<!--qu-->

Yes, they are. This ensures they can be used in any climate and are perfect for outside use.<!--split-->

How do I know how many pedestals I will need?<!--qu-->

In order to work out how much material you would require, we first ask you to take measurements of your proposed area. You can then put these measurements into our easy to use online calculators, which will automatically work out how many pedestals you will require. Alternatively, you can get in touch or call a member of our team on +44 020 3666 1134 to help work out your project quantities.

How do I use MESA plastic support pedestals?<!--qu-->

Ensure the foundation area where you will lay your decking or paving is free of all debris, lay out the pedestals along the edge. Adjust the height by turning the pedestal head and lock into place by twisting the collar fix. We recommend using a plumb to check the level of the pedestals. Please note, we recommend leaving a slope of 1:60, depending on the situation, to prevent water from settling. When laying the pedestals, ensure your joists or paving slabs are fully supported. To find out the support span, please check our installation guide. The installation of MESA plastic support pedestals is also highly dependent on whether you’ll be using them to support decking or paving. We thus recommend reading the appropriate section of the installation guide prior to installing your pedestals.

Find the full installation guide here.<!--split-->

Do you provide any pedestal accessories?<!--qu-->

We provide various pedestal accessories to ensure your decking and paving is as secure as possible.

The decking pedestal accessories we provide are joist cradles, protective rubber pads (recommended when laying pedestals on flat roofs), slope correctors, and aluminium joists ranging between 20 to 80mm heights. Find them here.

The paving pedestals accessories we provide are slope correctors (2mm or 5mm), protective rubber pads, rubber shims (1mm or 2mm), and spacer tabs (2mm or 5mm). Find them here.<!--split-->

What are non-combustible fire rated support systems?<!--qu-->

Almost every component within a system has to be individually tested to EN13501-1, and achieve either A1 or A2, s1, d0 certification. The exception are specifically listed exempted items including, electricals, door frames, membranes, gaskets and fixings. Support systems, however, need to achieve either A1 or A2, s1, d0 certification. There are no longer “system level” fire tests like BS8414 available. Find all our non-combustible solutions here.<!--split-->

What are MESA steel support pedestals?<!--qu-->

MESA steel support pedestals are made with steel and have an electrophoretic coating. This coating enhances the durability of the pedestals and protects them against corrosion. The optimum coverage ensures the steel support pedestals exceed many of the standard expectations in the industry, making them one of the best on the market.

Cradle, flat head and slop correcting pedestal options are available making even the most challenging installations cost and time effective.<!--split-->

What size do MESA steel support pedestals come in?<!--qu-->

MESA steel support pedestals come in an adjustable height range of 25-500mm with a head size of either 90mm diameter or 100x100mm, and a base size of 100x100mm. These sizes have been engineered to allow for maximum support while still fitting seamlessly under your paving or aluminium decking.<!--split-->

What are the different parts of MESA steel support pedestals?<!--qu-->

The bottom of the MESA steel support pedestal is known as the base unit. This 100x100mm for maximum support. Around the middle of the pedestal, you will see a locking nut. This locks the height adjustments and ensures it does not lower due to vibrations or shock movement. The top part of the pedestal is a rotatable head which allows for a quick and easy adjustable installation.<!--split-->

How much warranty do you offer on your steel support pedestals?<!--qu-->

MESA steel support pedestals come with 20 years residential and 10 years commercial limited international warranty. Find the full warranty here.<!--split-->

How much weight do MESA steel support pedestals support?<!--qu-->

MESA steel support pedestals have a working load of up to 1,000kg each. This means that the overall surface will be able to handle over 2.5kN/m2.

Please check with EnviroBuild if you require loads above this level.<!--split-->

Are MESA steel support pedestals saltwater resistant?<!--qu-->

Yes, they are. MESA steel support pedestals have been tested and approved for corrosion resistance (EN 1670:2007/Cor.1:2008 & EN ISO 9227:2017(E)). This makes them suitable for projects along coastlines and close to the sea.<!--split-->

Are MESA steel support pedestals frost resistant?<!--qu-->

Yes, they are. This ensures they can be used in any climate and are perfect for outside use.

Download the full MESA steel support pedestals technical specifications here.<!--split-->

How do I know how many pedestals I will need?<!--qu-->

In order to work out how much material you would require, please contact a member of our team on +44 (0) 203 959 1220. We do free quotation and estimations and can also do full take-offs.<!--split-->

Do you provide any pedestal accessories?<!--qu-->

We provide various pedestal accessories to ensure your decking and paving installation is as secure as possible.

We provide a protective membrane which protects the roofing membrane. A non-combustible version is in the making and will be available soon. The 2- or 4-way paving gasket with 2.5mm spacing and removable fins allow for quick and perfect paving spacing. The 2mm fixing is a secure and versatile paving fixer, and the paving edge bar secures paving slabs to support pedestals.

Is MESA Supports environmentally friendly?<!--qu-->

Yes, they are. MESA plastic support pedestals are engineered with 90% recycled plastic and are 100% recyclable. Saving these materials from landfill, giving them value and recycling them into a long-life product provides a harmonious solution to sustainable living.<!--split-->

How else is EnviroBuild sustainable?<!--qu-->

We ensure that the materials we supply are certified with; a high recycled content & recyclability level, long working life, plus where possible, the manufacturing process incorporates environmentally beneficial best practices. To go a step further, we donate 10% of our profits to sustainable causes to help become a carbon negative business. Read more about our environmental pledge here.
